CUSTOMER INVENTORY SERVICES
Assemblies & Testing
Torque It. Test It. Store It.
With more than 150 years’ of combined experience we can complete your down hole tool assemblies from start to finish.
Assemblies – Customer Specifications
-
Several Completions Tools
-
Drilling to injection Wells
-
Completions Tools
-
Surface Tools
-
Well Returns Jobs
-
Prep & Load Equipment
-
Post Job documentation
Torque Capabilities
-

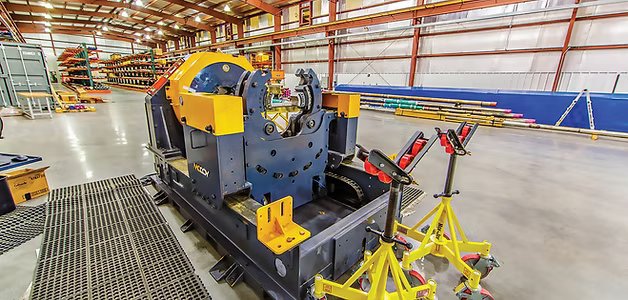

Horizontal Torque Unit 2 3/8”- 11 3/4” McCoy (≈50,000 ft/lb) Non-Marking capability to 20,000 ft/lb. Continuous Rotation
-
Horizontal Torque Unit 2-3/8” – 15” McCoy (100,000 ft lb) Non-Marking capability to 35,000 ft/lb. Continuous Rotation
-
Horizontal Torque Unit 5 1/2”- 28” EnerQuip.(≈250,000 ft/lb) Minimal Penetration Continuous Rotation
-
Casing Doubles and Chrome Tubing Doubles
-
15” to 3-1/2” EnerQuip (200,000ft/lb) Drill Pipe make and break for Doubles and Triples
-
Project Management
-
EnerQuip and McCoy Torque Turn Monitoring Systems 100’ x 4’ Enclosed Test Chamber with 30K PSI Pressure Testing Capabilities
-

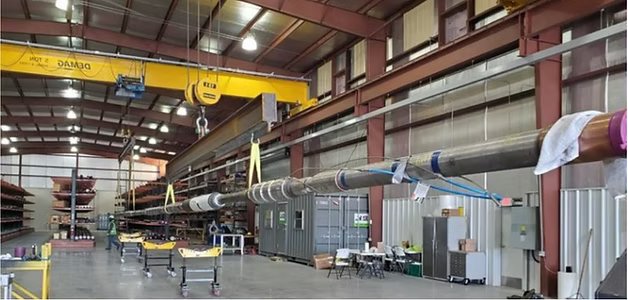

Assembly Make up includes Completion Tools, Drilling Tools, Cementation Products
-
Locations K&B Schriever / Tuboscope Amelia / Expert Riser Fourchon (Drill Pipe only)

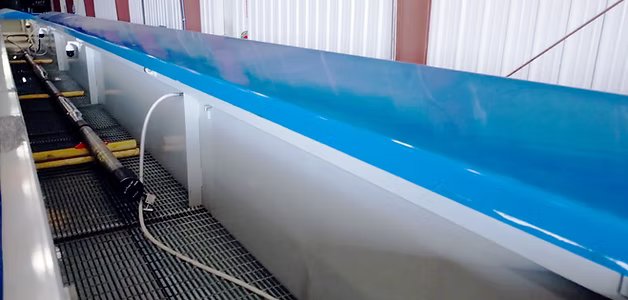

Hydrostatic Pressure Test Chamber
-
Proprietary Customized Design – Hose Source™ - 30k hydrostatic capability
-
100 ft. length X 40” O.D. capability
-
Reinforced end plates – corners
-
Impact force engineered
-
CRA safe support racks
-
Dual Zone Pressure and Monitoring Capability
-
Digital Monitoring System, Analog back-up
-
Rotating horizontal support straps (CRA safe)
-
Overhead cranes (5k, 15k)
-
14k Combi-Lift™ Forklift
